MT LNHT 4006 11.5NPT 908

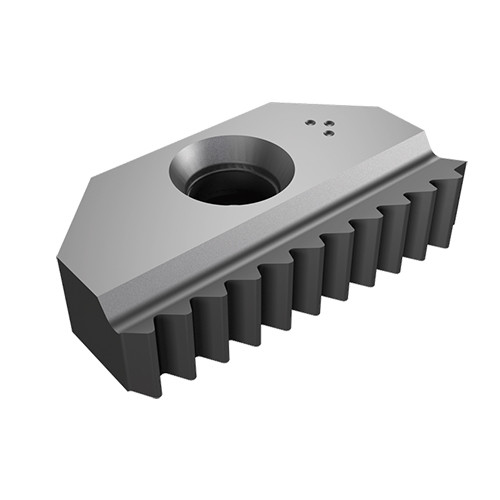

External and internal NPT full profile thread milling inserts for steam, gas and water pipes

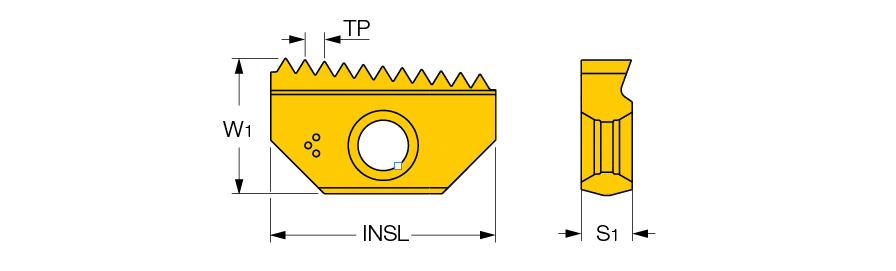

| Thread Standard | THFT | | Grade | IC908 |
| Thread Pitch (TP) | 2.209 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 11.5 | Coating | TiAlN |
| Insert Length (INSL) | 1.575″ | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 0.819″ | Measurement Type | Inch |
| Insert Thickness Total (S1) | 0.252″ | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPT60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | EXT |
Product Features
| Family Description | External and internal NPT full profile thread milling inserts for steam, gas and water pipes | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. Internal tolerance: ANSI/ASME B1.20.1 Standard NPT External tolerance: ANSI/ASME B1.20.1 Standard NPT |
Shipping Info
Package Weight
0.149
