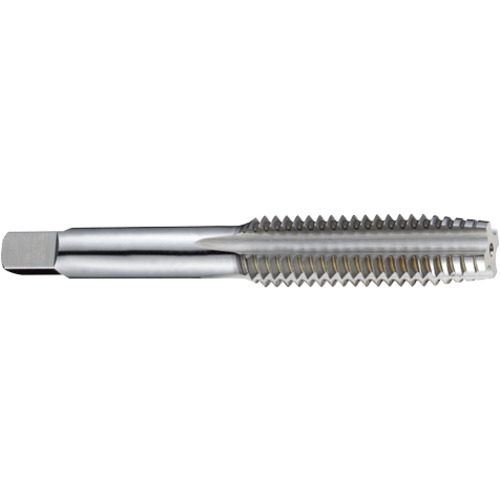

Straight Flute Tap; M10 × 1.25 mm ; 74.68 mm OAL ; 4 FL ; HSS ; Bright ; D5 ; Series T7A15
| Thread Diameter Size (TDZ) | M10 | Coating | Uncoated |
| Thread Pitch (TP) | 1.25 mm | Tapping Prehole Diameter (Pre-hole) | 0.349″ |
| Thread Standard | MF | Flute Length | 1-1/4″ |
| Overall Length (OAL) | 74.68 mm | Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 31.75 mm | End Shape | Plug |
| Usable Length (LU) | 31.75 mm | Shank Type | Square |
| Connection Diameter Machine Side (DCONMS) | 9.7 mm | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Length Group | 2xD |
| Thread Tolerance Class (TCTR) | D5 | Square Size | 7.26 mm |
| Standard | 302 | Measurement Type | Metric |
| Tool Type | Hand Tap | Series/List # | T7A15 |
| Chamfer | 4P-5P | Thread Size | M10 × 1.25 mm |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
3.75
Package Width
0.625
Package Height
0.5
Package Weight
0.104
