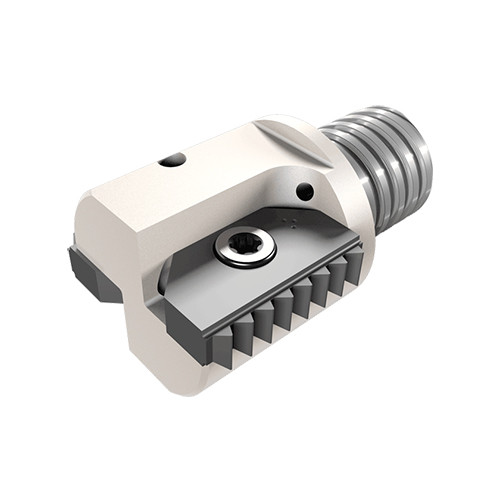

MTE D20/D0.79-2-MMT10-14
Indexable threading endmills with a MULTI-MASTER shank connection and coolant holes.

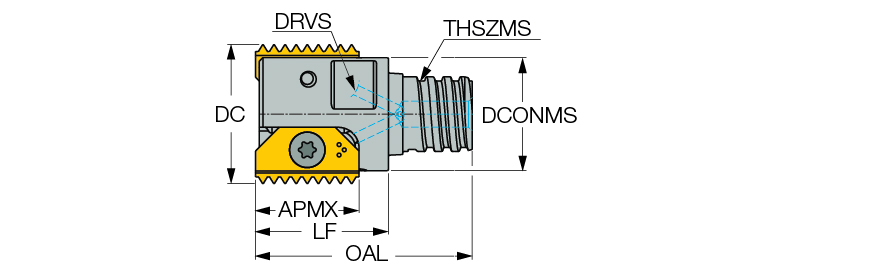

| Cutting Diameter (DC) | 0.787″ | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 0.602″ | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 0.551″ | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 1.154″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Grade | 3102179 |
| Body Material | Steel | Connection Code Machine Side (CCMS) | MultiMaster |
| Coolant Supply Property (CSP) | Coolant Thru | Thread Type (TTP_DF2) | INT |
Product Features
| Family Description | Indexable threading endmills with a MULTI-MASTER shank connection and coolant holes. | Country of Origin | Israel |
| Remarks | Tool cutting diameter should not exceed 2/3 of thread bore diameter For adaptation click on More Info. |
Shipping Info
Package Weight
0.205
