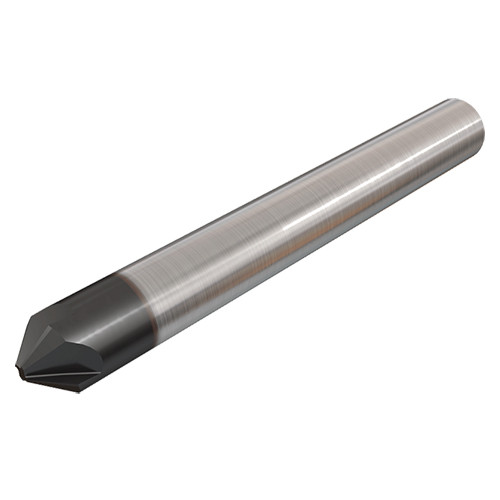

ECF D-3/45-4C08 IC900
45° chamfering and countersinking solid carbide endmills.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC900 |
| Application | | Chamfering | Countersinking | Slanted Shoulder & Chamfer | | Shank Type | Round |

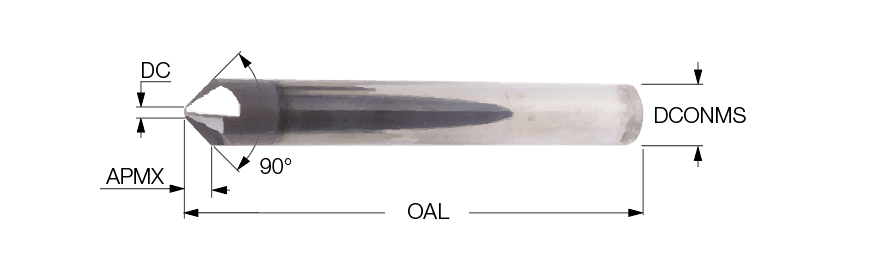

| Cutting Diameter (DC) | 2 mm | Length Group | Short | Stub |
| Flute Count (NOF) | 4 | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 3 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Series/List # | 64 |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Shank Size | 8mm |
| Point Angle (SIG) | 50 Degrees | Body Material | Carbide |
| Cutting Edge Material | Carbide | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | AlTiN |
Product Features
| Family Description | 45° chamfering and countersinking solid carbide endmills. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.103
