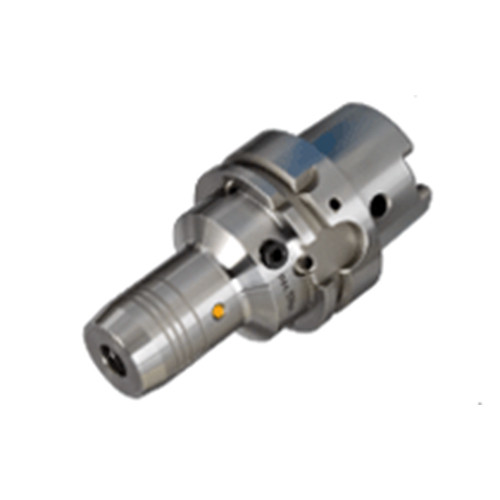

HSK A63 HYDRO 3/4X3.602
Hydraulic chucks with HSK DIN69893 form A tapered shanks.

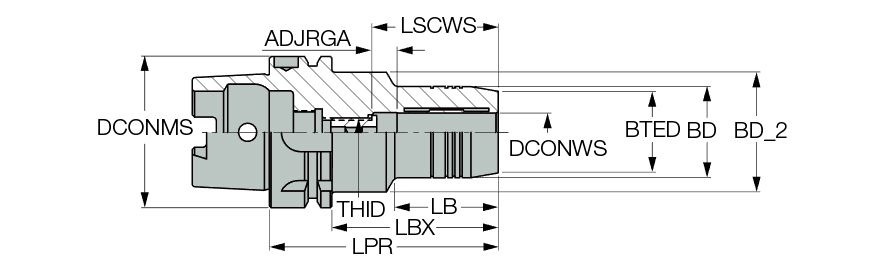

| Connection Diameter Machine Side (DCONMS) | #63 | Shank Size (SS) | 63 |
| Body Length Maximum (LBX) | 3.38″ | Tool Type | HSK |
| Body Length (LB) | 1.949″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Nose Length | 1.5354″ |
| Body Diameter (BD) | 1.654″ | Measurement Type | Inch |
| Protruding Length (LPR) | 3.602″ | Body Material | Steel |
| Overall Length (OAL) | 4.64″ | Connection Code Machine Side (CCMS) | HSK |
| Shank Type | HSK |
Product Features
| Family Description | Hydraulic chucks with HSK DIN69893 form A tapered shanks. | Country of Origin | Germany |
| Remarks | Chucking forces will significantly decrease if reduction sleeves are used (order separately). A cooling tube must be used with coolant through HSK spindles (order separately). Clamping wrench (wrench HYDRO HEX4) and test bar to be7ordered separately. Reduction sleeves are available for .75, and 1.25 bore diameters (must be ordered separately). |
Shipping Info
Package Weight
2.903
