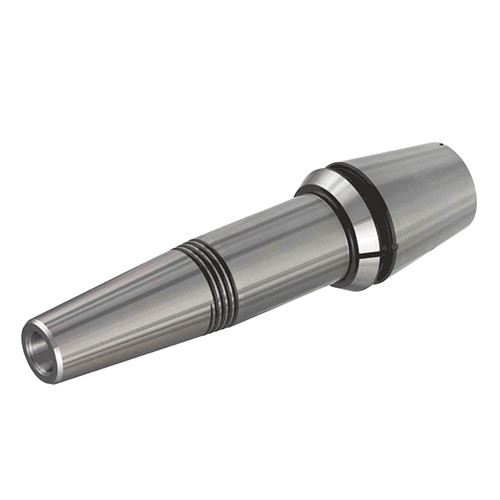

ER20 SRK 5X35 JET2
SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only.

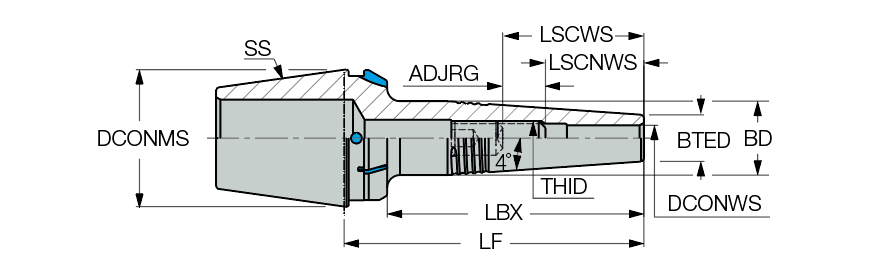

| Connection Diameter Machine Side (DCONMS) | 20 mm | Clamping Length Workpiece Side (LSCWS) | 21 mm |
| Connection Diameter Workpiece Side (DCONWS) | 5 mm | Series/List # | SHRINK |
| Shank Size (SS) | ER20 | Measurement Type | Metric |
| Body Length (LB) | 24.5 mm | Tool Type | Spring Collets |
| Body Length Maximum (LBX) | 35 mm | Body Material | Steel |
| Overall Length (OAL) | 66 mm |
Product Features
| Family Description | SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
0.196
