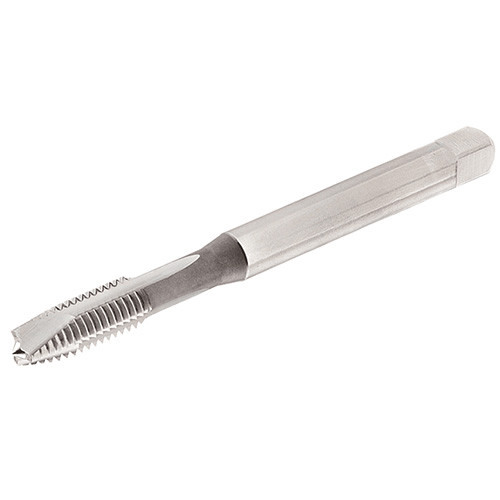

TPGN UNF #6-40-M HETI
HSSE 5% Co Spiral Flute Machine Taps - Unified Fine Threads, for a Wide Range of Materials

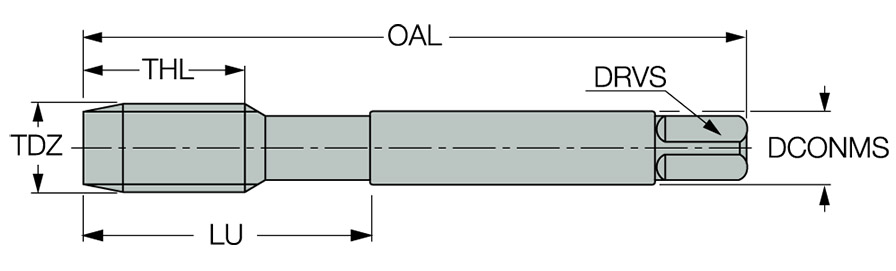

| Thread Diameter Size (TDZ) | UNF No.6 | Standard | DIN 371 |
| Threads per Inch (TPI) | 40 | Tool Type | Machine Through Hole Taps |
| Overall Length (OAL) | 2.205″ | Coating | TiN |
| Thread Cutting Part Length (THL) | 0.394″ | Drive Size (DRVS) | 0.118″ |
| Usable Length (LU) | 0.79″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.157″ | Grade | HETI |
| Flute Count (NOF) | 3 | Thread Size | UNF No.6 - 40 |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Body Material | HSS |
| Cutting Edge Material | HSS |
Product Features
| Family Description | HSSE 5% Co Spiral Flute Machine Taps - Unified Fine Threads, for a Wide Range of Materials | Country of Origin | Hungary |
