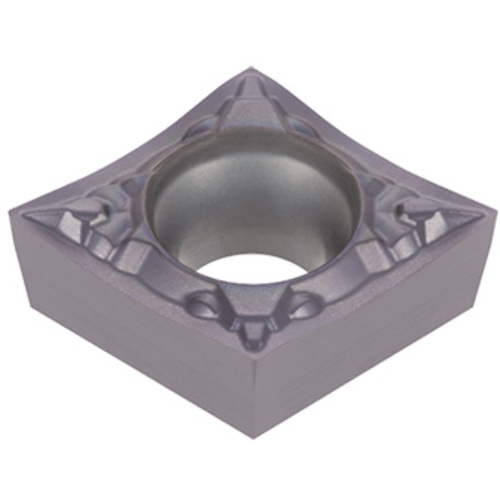

CCGT 32.50.5 M-JS AH6225
Positive 7 deg relief angle, G class, 80 deg rhombic insert, for turning on small lathes
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0039″ |

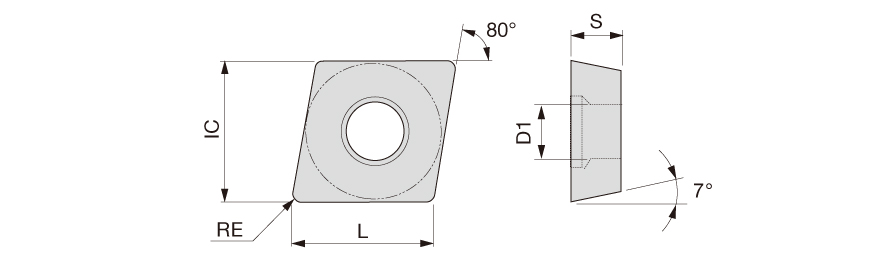

| Corner Radius (RE) | 0.0079″ | Depth of Cut Maximum (APMX) | 0.1181″ |
| Cutting Edge Length (L) | 0.382″ | Min. Turning Feed (ft(min)) | 0.0008 ″/rev |
| Insert Thickness (S) | 0.156″ | Max. Turning Feed (ft(max)) | 0.0039 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Neutral |
| Coating | TiAlN | Chip Breaker Type | JS |
| Grade | AH6225 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
Product Features
| Family Description | Positive 7 deg relief angle, G class, 80 deg rhombic insert, for turning on small lathes | Country of Origin | JAPAN |
| Remarks | "F" included in designation means sharp edge. |
