EOBI-R.08R3.12A1.1/10-4C5 IC902

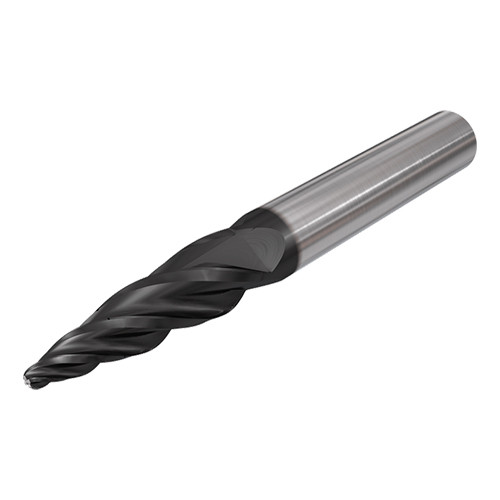

Solid carbide oval-shaped (Barrel) endmills for 3D profiling. For semi-finishing & finishing applications.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Profiling | | Grade | IC902 |

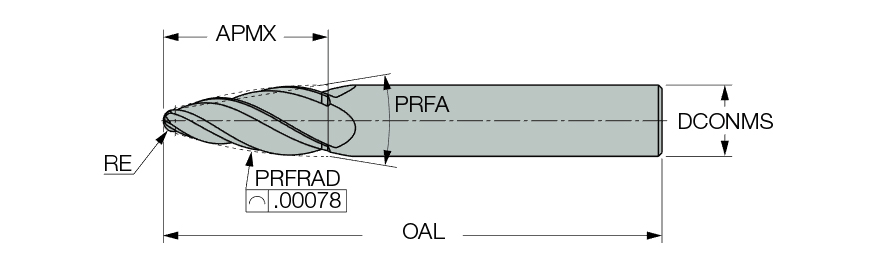

| Cutting Diameter (DC) | 0.141″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1.1″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 3″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
Product Features
| Family Description | Solid carbide oval-shaped (Barrel) endmills for 3D profiling. For semi-finishing & finishing applications. | Country of Origin | Israel |
