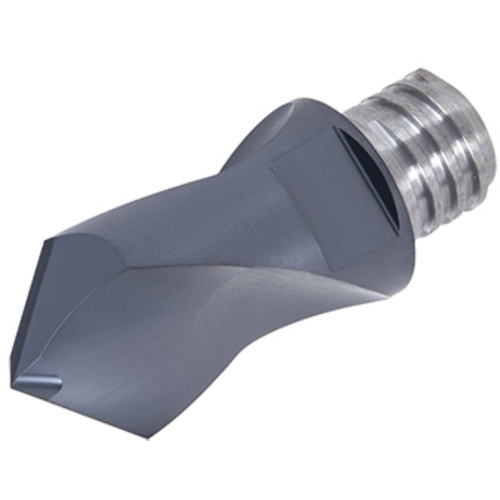

VDS100A45-02S06 AH725
Drill Head; 10 mm Dia. ; AH725 ; Carbide ; TiAlN

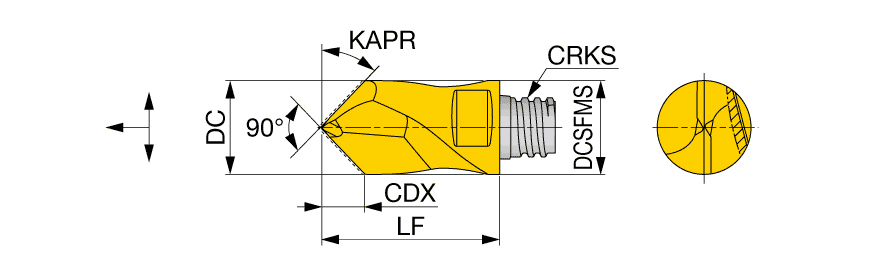

| Cutting Diameter (DC) | 10 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Multi Functional tools | | Overall Length (OAL) | 25.65 mm |
| Grade | AH725 | Cutting Diameter Maximum (DCX) | 10 mm |
| Tool Type | Solid chamfering endmills | Coating | TiAlN |
| Protruding Length (LPR) | 19 mm | Body Material | Carbide |
Product Features
| Family Description | Chamfering & Spot drill, 2 flutes, chamfering angle: 45 degree, helix cutting edge | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping. |
