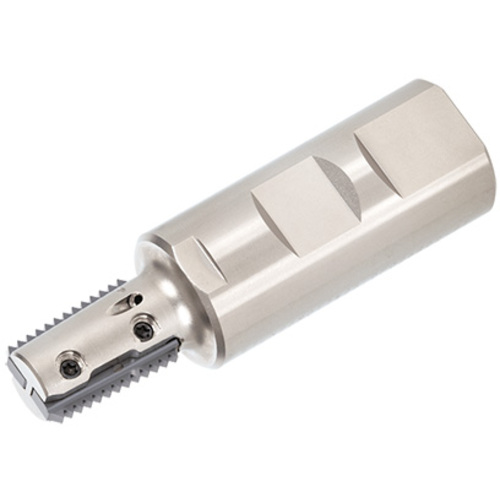

ETTL25M022W25.0F043R03-PT
Indexable thread milling cutters, long edge

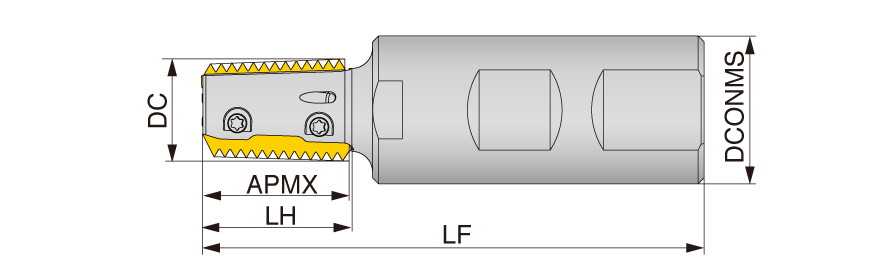

| Cutting Diameter (DC) | 0.874″ | Application | | Ext. Thread Milling | Int. Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Tool Type | Indexable thread mills |
| Depth of Cut Maximum (APMX) | 0.984″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.016″ | Cutting Item Count (CICT) | 3 |
| Master Insert Identification (MIID) | TL25SEIR14BSPT | Head Length (LH) | 1.693″ |
| Body Material | Steel |
Product Features
| Family Description | Indexable thread milling cutters, long edge | Country of Origin | Japan |
Shipping Info
LocalField10
0
Package Weight
0.999
