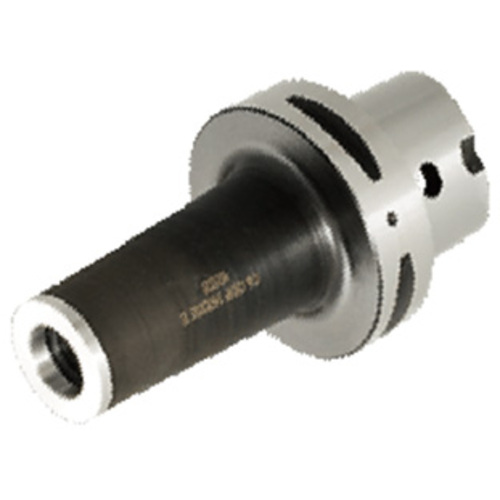

C6ODP10X105
TungCap TungFlex modular tooling system
| Shank Size (SS) | 63. | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 3.268″ | Nose Diameter | 5.63″ |
| Body Diameter (BD) | 0.709″ | Overall Length (OAL) | 4.134″ |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Application | | Face contact interface | | Body Material | Steel |
| Body Length_2 (LB_2) | 2.953″ |
Product Features
| Family Description | TungCap TungFlex modular tooling system | Country of Origin | Israel |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
LocalField10
0
Package Weight
1050
