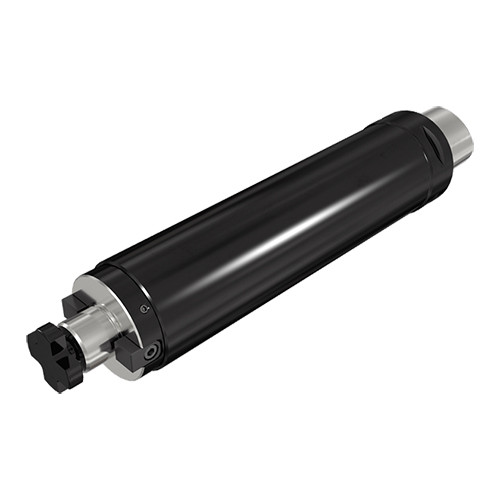

AV C6 SEM22 48X270
Anti-vibration shell mill holders with coolant holes and CAMFIX (ISO 26623-1) exchangeable tapered shanks
| Connection Diameter Machine Side (DCONMS) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Clamping Length Workpiece Side (LSCWS) | 19 mm |
| Shank Size (SS) | 63 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Functional Length (LF) | 270 mm | Measurement Type | Metric |
| Body Length (LB) | 270 mm | Body Material | Steel |
| Body Diameter (BD) | 48 mm |
Product Features
| Family Description | Anti-vibration shell mill holders with coolant holes and CAMFIX (ISO 26623-1) exchangeable tapered shanks | Country of Origin | Germany |
| Remarks | For user guide, click on More Info |
Shipping Info
Package Weight
12.906
