ISD-IC 2.402-2.676

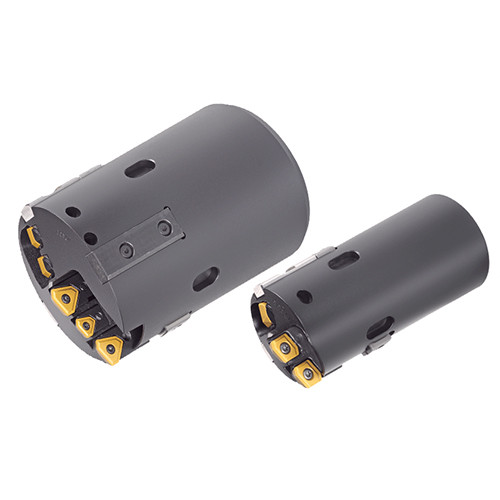

Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
| Application | | Deep Drilling | | Coolant Supply Property (CSP) | Coolant Thru |

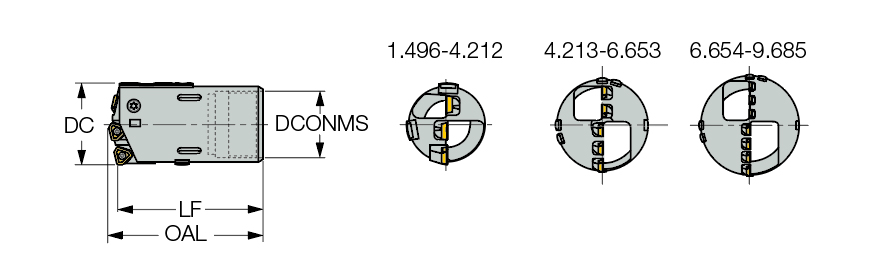

| Connection Diameter Machine Side (DCONMS) | 2.087″ | Connection Thread Size (Ts) | TS-O21 |
| Shank Size (SS) | 1″ | Cutting Diameter Minimum (DCN) | 2.402″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 2.676″ |
| Shank Length (LS) | 1.575″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.685″ | Body Material | Steel |
Product Features
| Family Description | Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide, click on More Info Ordering example: DSD-IC 2.650 |
