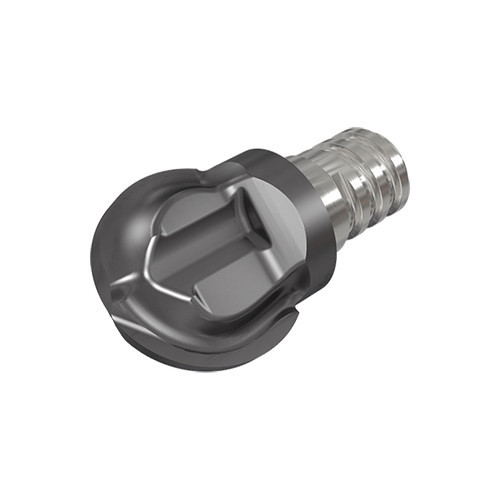

MM HBR.750-2T10 IC908
MULTI-MASTER, high accuracy (h7 milling head diameter), may be used for both roughing and precision finishing applications. Center cutting, 240° spherical cutting profile. Recommended for finishing and may be used on hardened steel

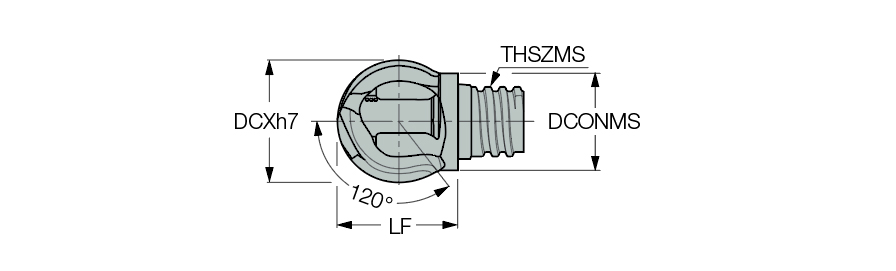

| Application | | Profiling | | Grade | IC908 |
| Cutting Diameter (DC) | 3/4″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.6″ | Body Material | Carbide |
| Functional Length (LF) | 0.71″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 1.173″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER, high accuracy (h7 milling head diameter), may be used for both roughing and precision finishing applications. Center cutting, 240° spherical cutting profile. Recommended for finishing and may be used on hardened steel | Country of Origin | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection. |
