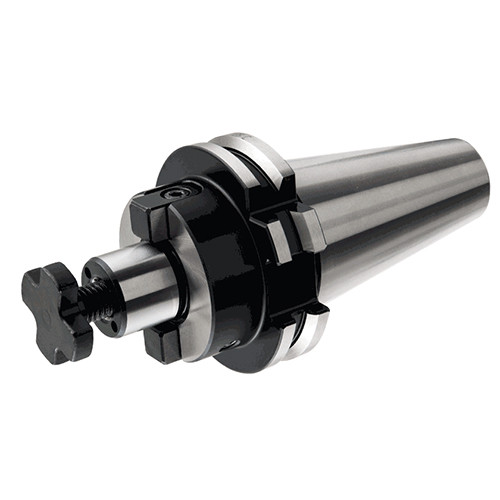

DIN69871 40 SEM16X100 C
Shell Mill Holder; 40 mm Shank Dia. ; 16 mm Hole Dia. ; 38 mm Body Dia. ; 100 mm Body Length ; 40 Shank Size ; CAT Shank

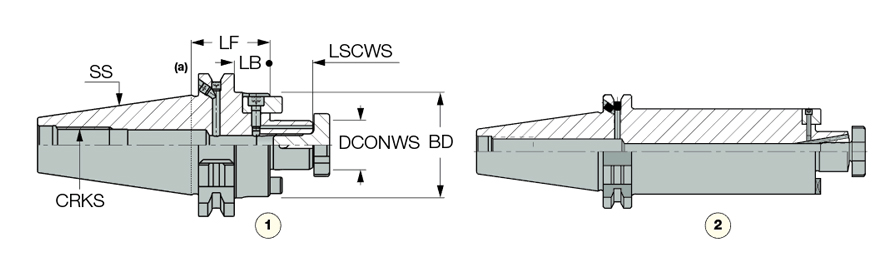

| Connection Diameter Machine Side (DCONMS) | 40 mm | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Shank Size (SS) | 40 | Material | Steel |
| Functional Length (LF) | 100 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 100 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 38 mm | Tool Type | DIN 69871 |
| Shank Standard | DIN69871 | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | ISO 3937 Shell mill holders with coolant holes and DIN 69871 form ADB tapered shanks. | Country of Origin | Italy |
| Remarks | (a) If the B type coolant option is required, the plug screw must be removed from the flange cooling hole (use a 2 mm hex key) |
Shipping Info
Additional Fees and Notes
0
Package Weight
3.486
